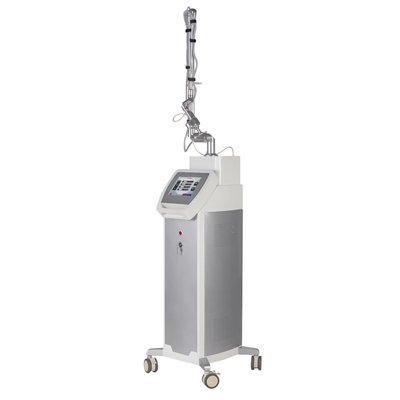

Fractional CO2 Laser Machine

Fractional CO2 Laser Machine
  • Fractional CO2 Laser Machine
  • Fractional CO2 Laser Machine
  • Fractional CO2 Laser Machine
  • Fractional CO2 Laser Machine
  • Fractional CO2 Laser Machine
  • Fractional CO2 Laser Machine
  • Inquiry
    How it works

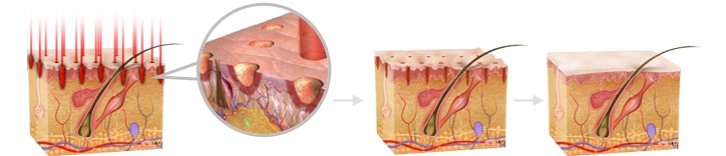

    Based on the theory of selective photothermolysis, the fractional CO2 laser machine has the advantages of rapid and remarkable effects, minor side effects and short recovery time, which are the combination of the merits of both the invasive treatment and the non-invasive treatment. The treatment with fractional laser refers to evenly perforating micro-holes on the skin with laser to induce a series of biochemical reactions, thus to achieve the effects of skin tightening, skin tendering, and removal of colored spots. The fractional laser treatment covers only part of skin tissues, and the newly perforated holes will not overlap each other, so part of the normal skin can be reserved to quicken recovery so that patients can return to normal life four or five days later. The treatment itself is safe enough that can be practiced in any part of the body. The indications may include acne scars, spots lightening and removal, surgical scars, traumatic scars, burnt scars, chloasma, poikiloderma, wrinkles, cutis laxa, and photoaging skin.

    How it works
    Applications
    • Efficient cooling system ensures long
    • Skin renewal and regeneration;
    • Remove acne and scars;
    • Remove all kinds of wrinkles;
    • Remove neoplasms;
    • Improve intractable spots like chloasma, senile plaque and freckles, as well as chromatosis;
    • Treat telangiectasis;
    • Sun damage recovery and skin renewal;
    • Exfoliation;
    • Skin tendering and tightening, and pore minimizing;
    • Pierce ears;
    • Effective treatment with skin dehydration and roughness;

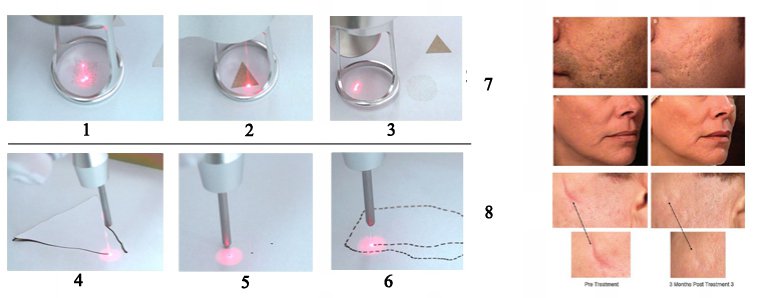

    • Cutting head:tissue resection and cutting;
    • Gynecology head: mainly for vaginal tightening and treatment of cervical erosion;
    • Dentistry head: E.N.T. treatment and dental cutting;
    • Andrology head:foreskin removal.
    Features
    • The imported USA Coherent RF Tube is of stable performance, high energy and long life expectancy.
    • The 7-jointed light-conducting arm brings more accurate treatment and easier operation. (Light conducting arm is the output tube of laser for reflecting the laser beam from the laser power supply, and then focusing into points to be emitted.)
    • The new product is equipped with torsional spring rather than hammer, so it is more handy and accurate for treatment.

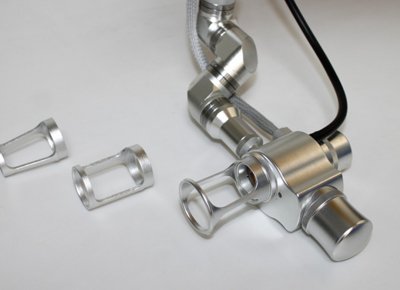

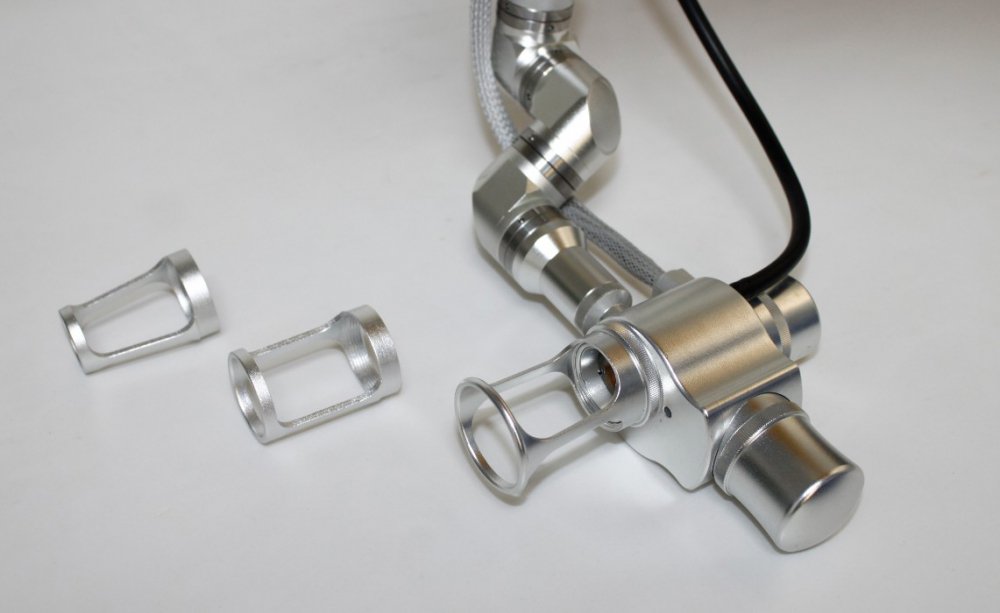

    • Scanners with three different dimensions (15 mm, 20mm and 35 mm) can meet the treatment in different areas.
    • Arbitrary switching between two scanning modes (random: can relieve pain; sequence: a little pain).
    • There are 16 scanning patterns with adjustable sizes, so that a hollow one can be selected for protection.

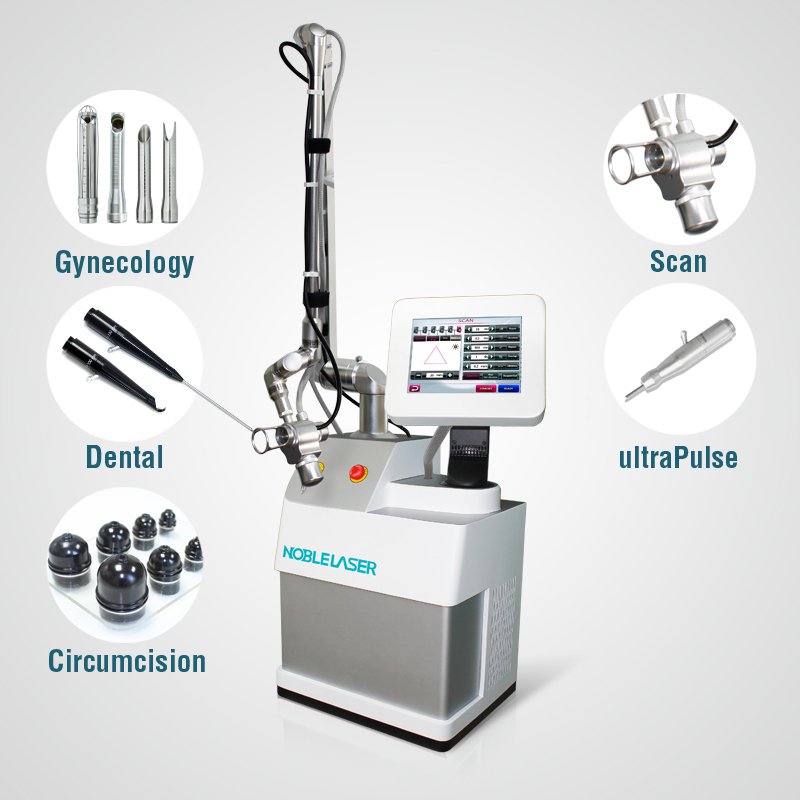

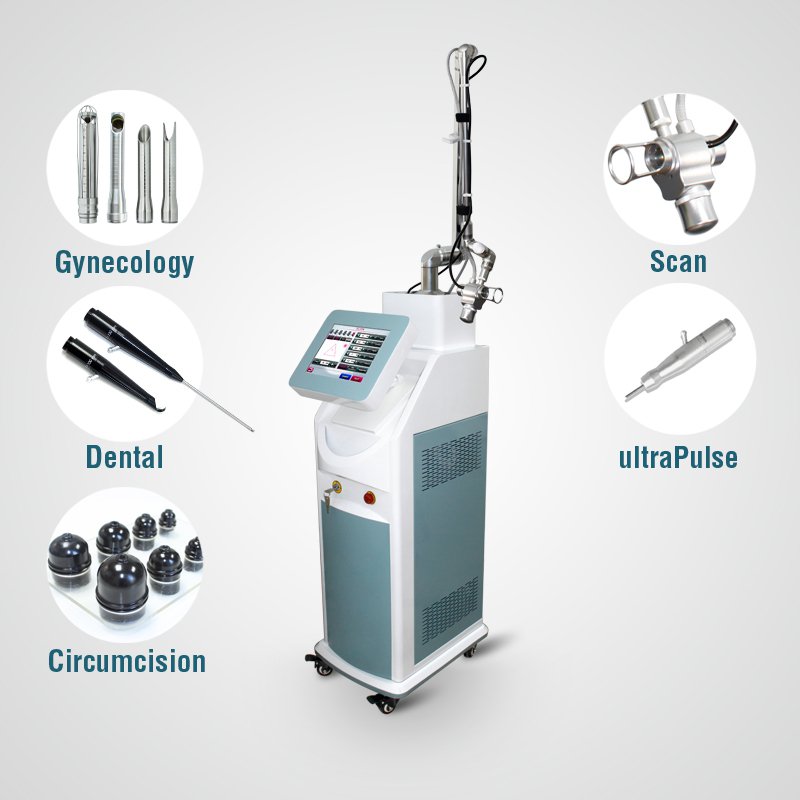

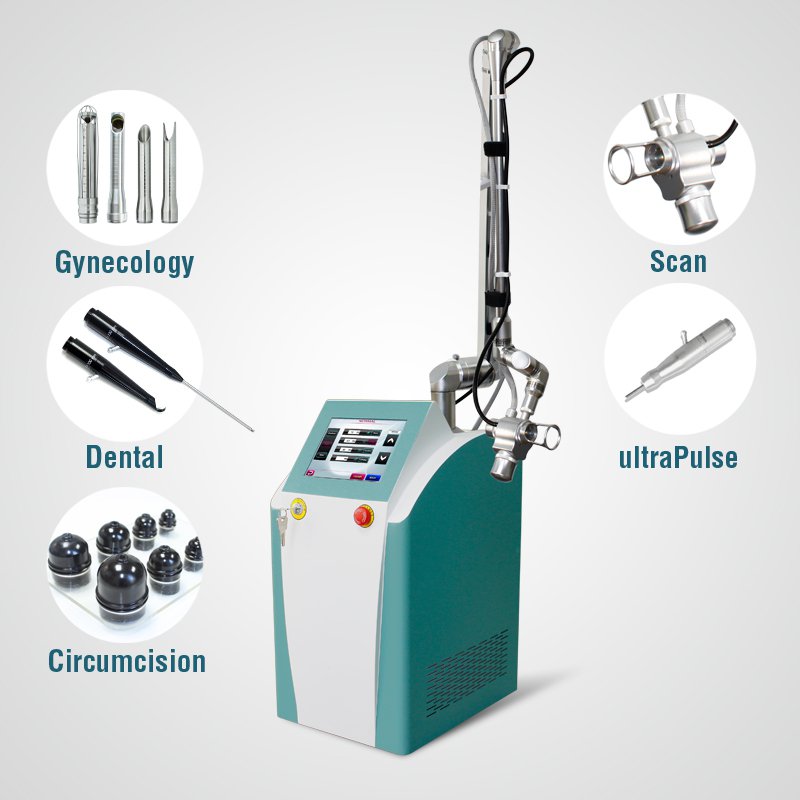

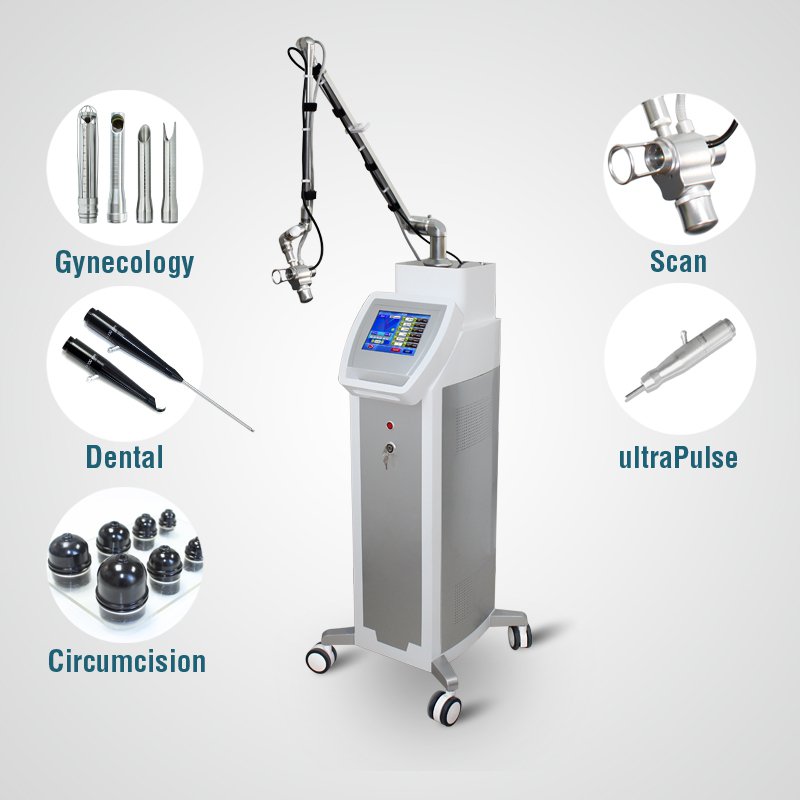

    • Five different hand pieces including scanning heads, cutting heads, E.N.T. & dental heads, gynecology heads, and andrology heads, are of wider treatment range and higher efficiency.
    • The automatic startup security detection system (on laser, temperature and voltage) and the parameter memory are convenient for the treatment of regular clients.

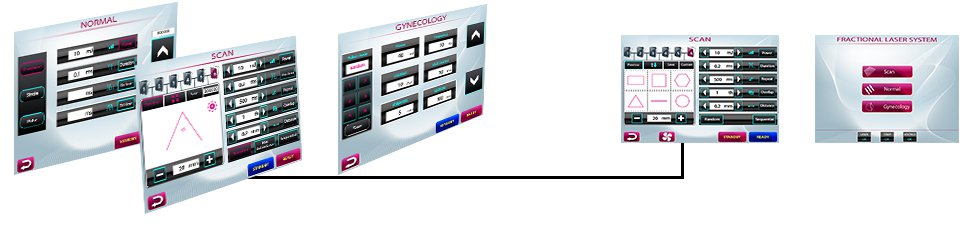

    Software
    Software

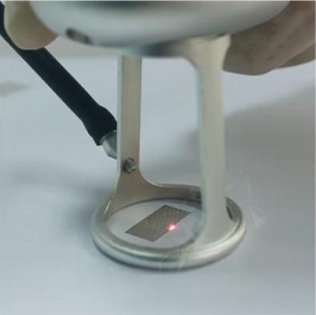

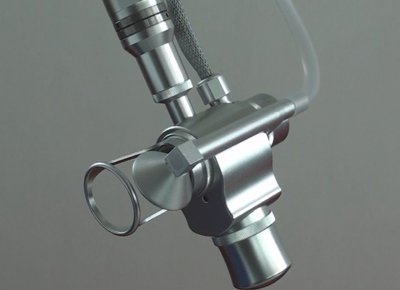

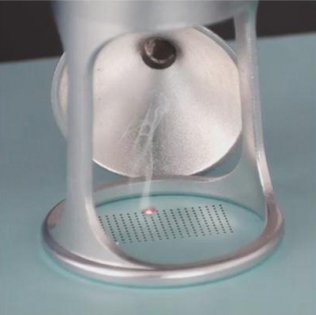

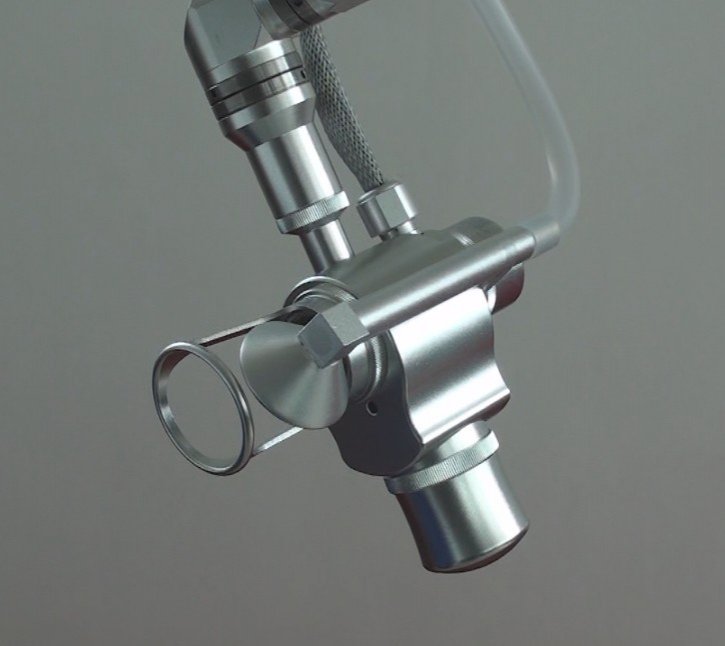

    A new generation of high speed scanners

    The most advanced purification system can absorb all gas and dust to make the treatment healthier and more comfortable.

    • Fractional CO2 Laser Machine
    • Fractional CO2 Laser Machine
    • Fractional CO2 Laser MachineNothing for the gas&dust
    • Fractional CO2 Laser MachineBlowing off the gas&dust
    • Fractional CO2 Laser MachineSuck away the gas&dust
    Fractional CO2 Laser Machine
    • Random
    • Senquential
    • Max dot distance
    • CW
    • Single
    • Pulse
    • SCAN
    • CUTTING
    Parameters
    Screen 8.4inch LCD real color touch screen
    Light conducting system 7 jointed arms to conduct light
    Laser Metal RF driver tube(coherent)
    Available treatment head Scan
    UltraPulse
    Dental
    Gynecology
    Andrology
    Wavelength 10.6µm
    Power 30W
    MODE Scan, Normal
    Laser energy 10mj~1000mj
    Step value 5mj
    Scan patterns
    • SquareSquare
    • RectangleRectangle
    • CircleCircle
    • TriangleTriangle
    • HexagonHexagon
    • LineLine
    • Torus-LightTorus-Light
    • Torus-MidTorus-Mid
    • Square with hollowSquare with hollow
    • Rectangle with hollowRectangle with hollow
    • Circle with hollowCircle with hollow
    • SquareTriangle with hollow
    • SquareHexagon with hollow
    • SquareLine with hollow
    • SquareDeep-Dots
    • FusionFusion
    Scan pattern size 0.1x0.1mm-20x20mm
    Scan Mode Random; Sequence;
    Dot quantity 2500 dots at most
    Pulse duration 0.2-4ms
    Spot distance 0.2---2.0mm (0.2mm)
    Pulse energy 1mj to 120mj
    Cooling system air cooling system
    Laser apparatus Sealed off laser device stimulated by direct current
    Condenser focus f=50mm
    Spot size 1.8±0.2mm
    Radiation time 0.011s
    Preview Yes (635nm infrared ray)

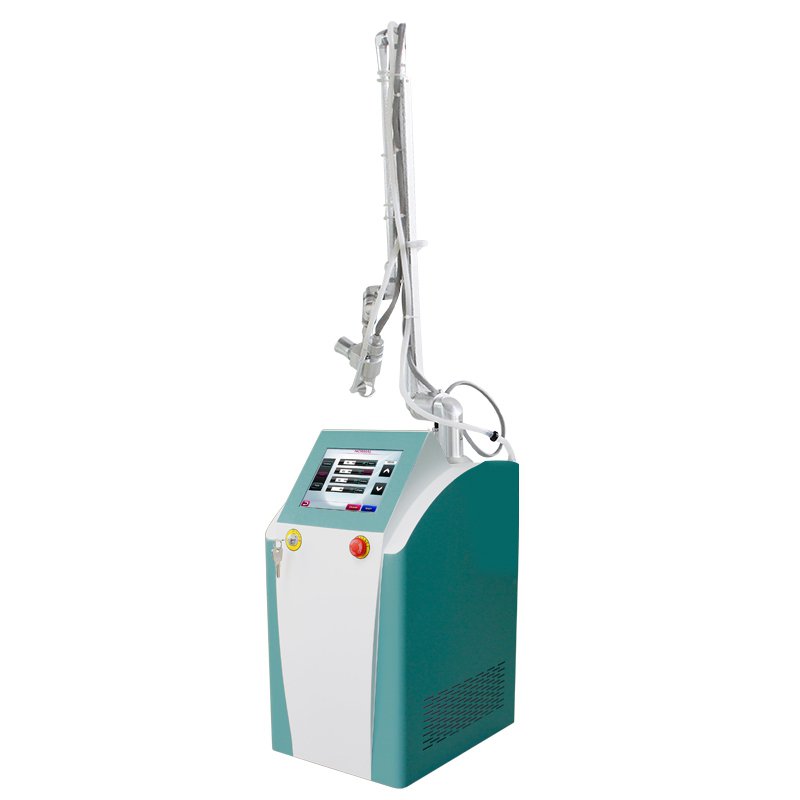

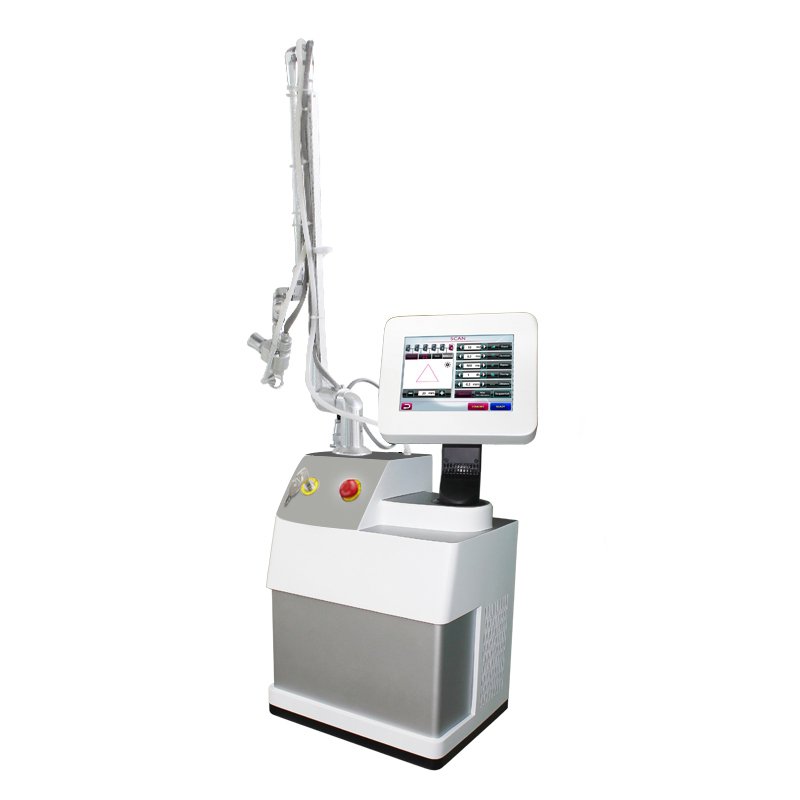

    Available model

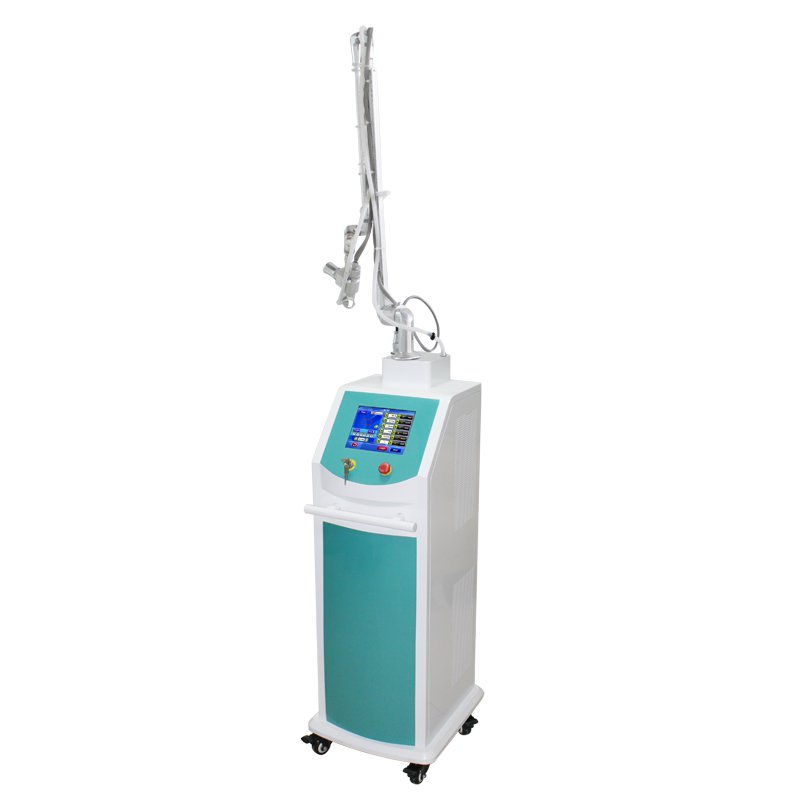

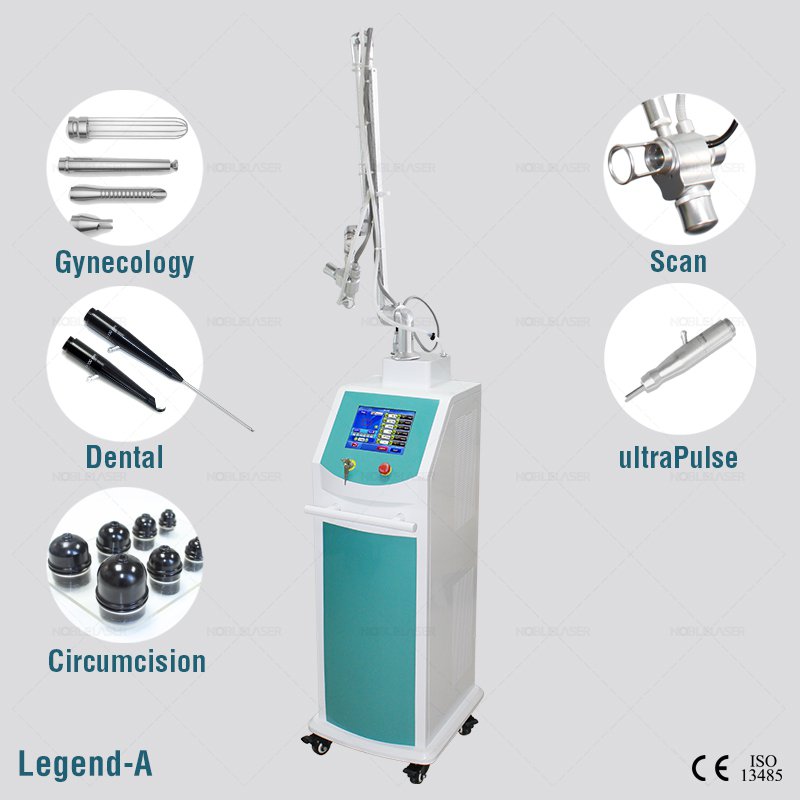

    • Legend-A
      Legend-A

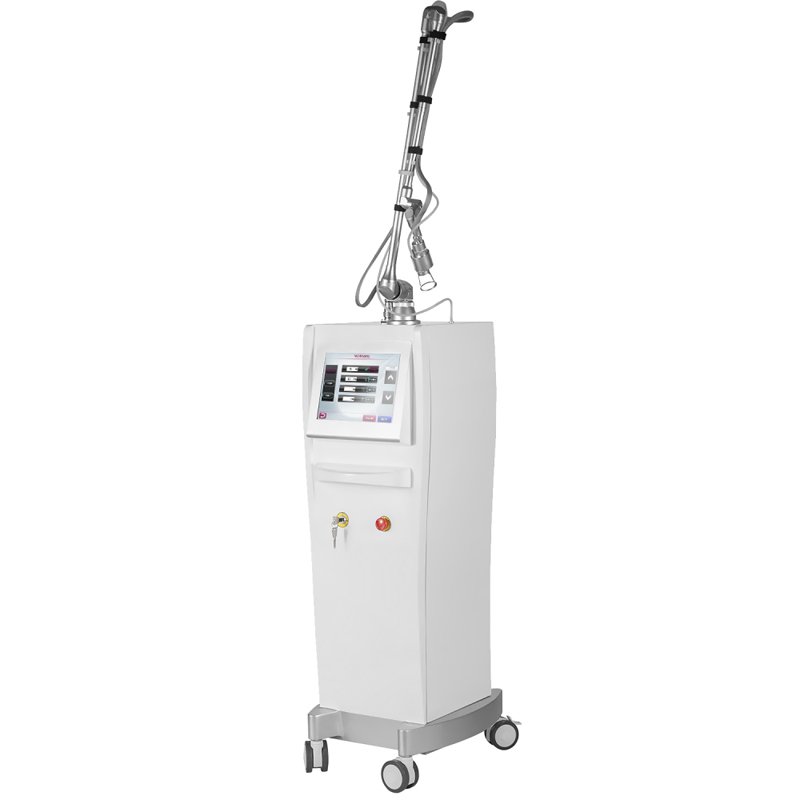

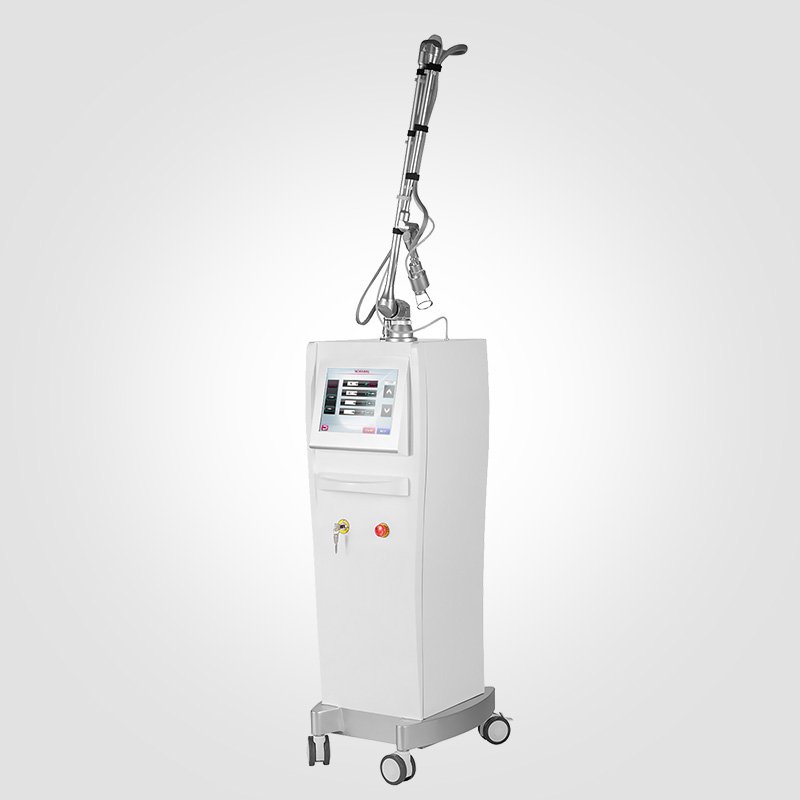

    • Legend-B
      Legend-B

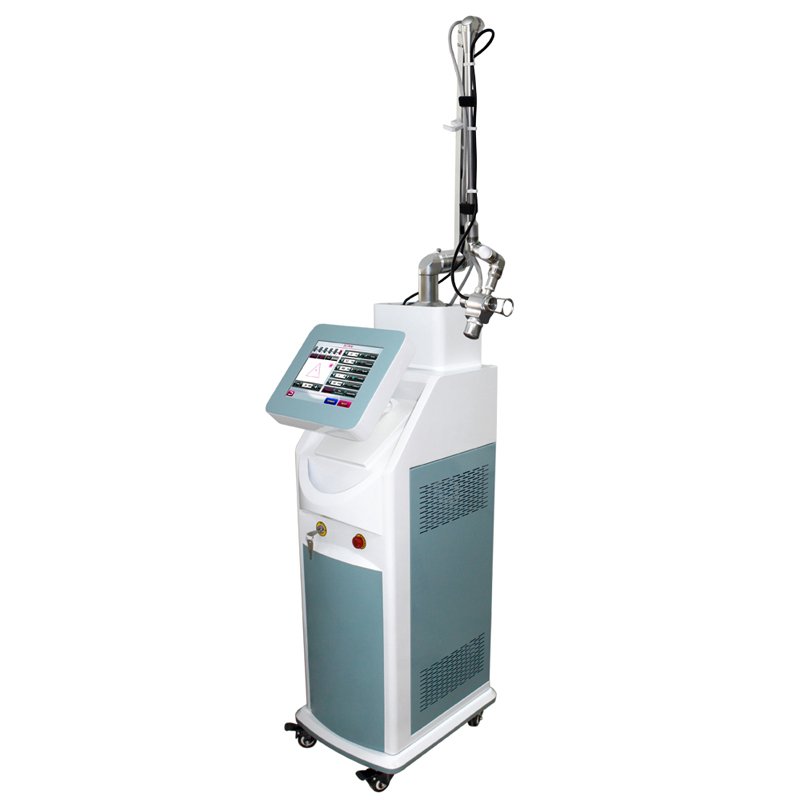

    • Legend-F
      Legend-F
    • Legend-G
      Legend-G
    • Legend-H
      Legend-H
    • Legend-I
      Legend-I
