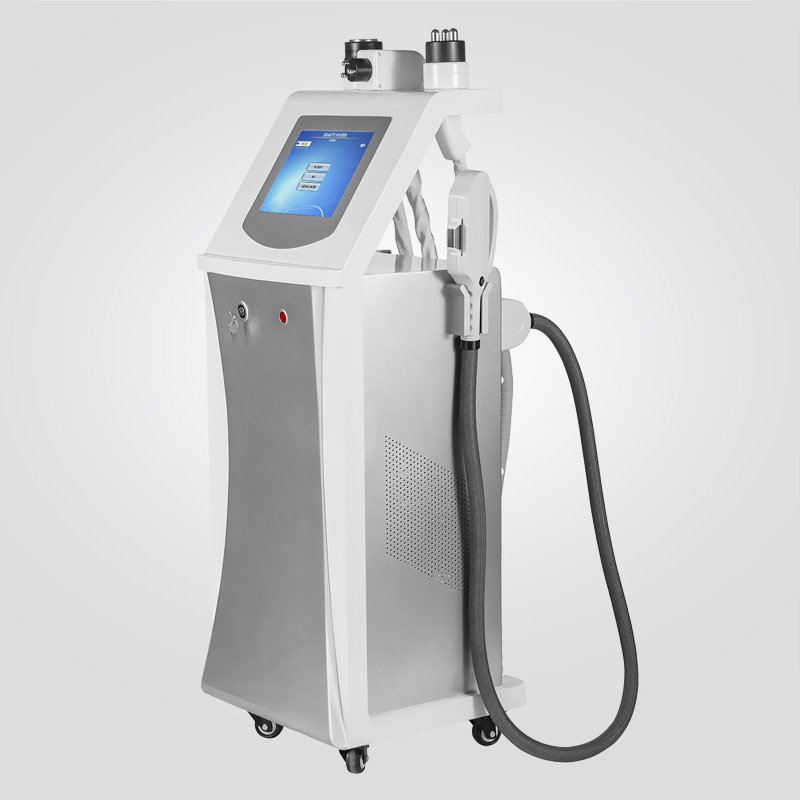

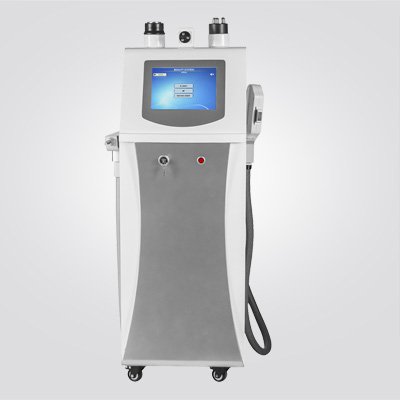

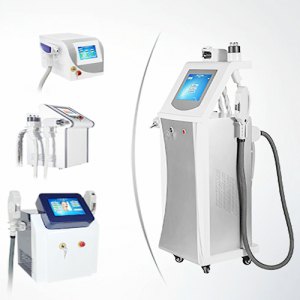

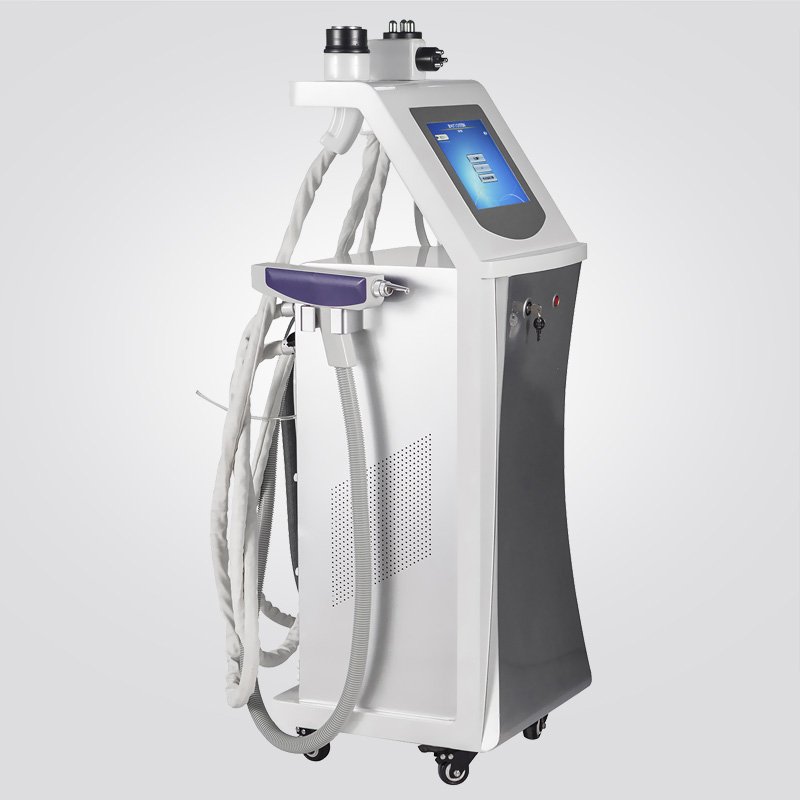

Elight+Yag Laser+RF Multifunction beauty Machine

  • Elight+Yag Laser+RF
  • Elight+Yag Laser+RF
  • Elight+Yag Laser+RF
Inquiry
How it works
How it works

The technology of IPL and bipolar radio frequency jointly act on the entire corium layer and connective tissue to stimulate the realignment and regrowth of collagens in different depths, and the selective absorption of light by the skin brings about the photothermolysis effect on various pathological tissues of epidermis and corium layer, thus achieving the beauty effect.

How it works

The bipolar radio frequency released can lead to high frequency vibration of water molecules in cells at a certain hypodermic depth, the heat 45-60℃ generated from which shrinks the myofibril, tightens the skin and wrinkles. Then the thermal effect generated in the corium layer will reproduce, rearrange, increase and repair the collagens, instantly achieving the effect of skin tightening, permanent wrinkle removal and anti-aging.

How it works

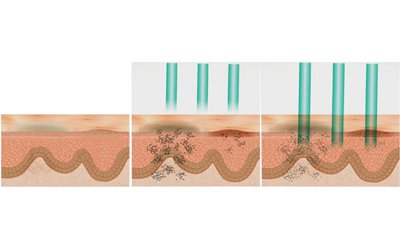

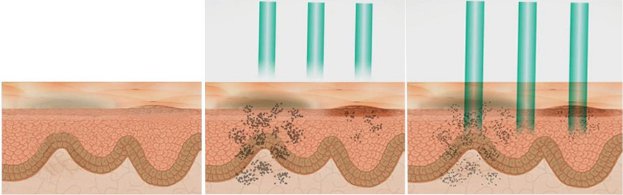

Eyebrow tattoo removal: Long wavelengths allow laser light to penetrate more deeply to the corium layer, and heat generated in the hair shaft diffuses to the stem cell and matrix targets to cause desired damage. Due to the short action time (lasting only several nanoseconds), the pigment expands rapidly after absorbing high-energy lasers in an instant, and then cracks into fine granules that are phagocytize by macrophages and then excreted from the body, thus lightening the pigments and whitening the skin.

Applications
  • Removal of tattoos in all colors.
  • Removal of eyebrow tattoo, eye line, etc.
  • Removal of pigmentation (including those caused by metal contamination), freckles and senile plaque.
  • Hair removal: limbs hair, armpit hair, beard, lip hair, etc.
  • Skin rejuvenation: wrinkles removal, skin whitening, pore shrinking, etc.
  • Spots removal: freckles, age pigment, sunburn, birthmark, etc.
  • Vasculopathy treatment: telangiectasis and rosacea.
  • Acne removal: various acnes and pigments.
  • Scar removal, skin tightening, weight reducing and body shaping.
Features
  • There are four treatment heads, heads of 532 nm and1064 nm are used to remove tattoos and eye lines in various colors, and heads of 755 nm and 1320 nm help remove freckles, skin rejuvenation and whitening, pores minimizing and removal of the nose blackheads.
  • Integration of optical cavity prevents the light from being weakened and reduces the fault rate.
  • Red light indicator is useful for positioning, which is independent of YAG and will not be weakened.
  • UK imported xenon lamp has long service life and more stable energy.
  • Light spots of different size are suitable for different treatment areas.
  • With expert control system, the beauty machine is able to adjust the parameters according to the treatment part, the skin color and the hair color of customers automatically.
  • The frequency is adjustable within 1-40MHz, so that it can precisely penetrate to treatment depths of 5-15mm with significant effects.
  • High efficiency of short treatment time, quick effect and long maintenance.
Parameters
Basic specification
Screen 10.4 inch color LCD touch screen
Cooling Way Water & semi-conductor cooling
Power Supply 220V/110V ±10% 50Hz/60Hz
E-light system Nd Yag laser tattoo removal system
Lamp-house Super intense pulsed light Laser Type Q-Switched Nd: YAG laser

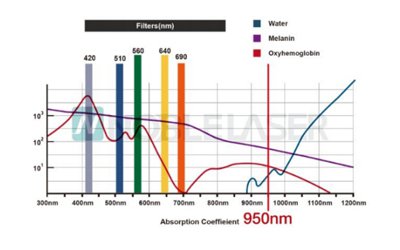

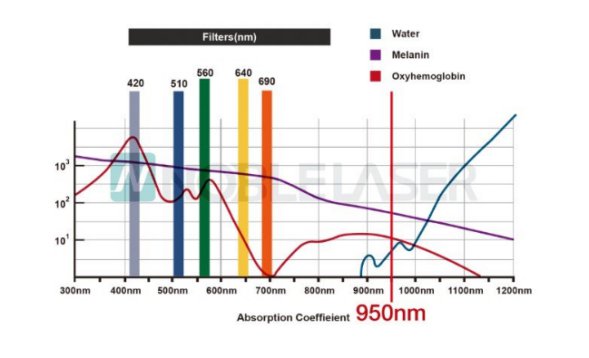

Range of Spectrum 480-950nm: remove acne Wavelength 1064nm&532nm
530 -950nm: pigmentation treatment Power 500W
560 -950nm: skin rejuvenation Pulse energy 1000mj
590-950nm: remove vascular Duration (WIDTH) 6ns
640 -950nm: remove unwanted hair Voltage 500-1000V
690-950nm/755-950nm/810-950nm: remove hair (optional) Pulse Repetition Rate 1-6Hz
RF Frequency 3MHZ Indicator light infrared indicator
RF Energy 1-100J/cm3 Treatment Area 1mm2 - 7mm2
IPL Energy 1~50J/cm2 Cooling Method water cooling&air cooling
Power supply 2500W Independent RF system
Size of Spot Filter handpiece: 12*30mm2, 13*40mm2, 15*50 mm2 Tripolar RF system
Filter fixed handpiece: 8*40mm2, 14*40mm2, 16*50 mm2
Pulse number 1~6T Frequency 1-40MHz
Pulse Interval 1~99ms Handle of RF one body RF+ one face RF
Pulse Width 0.1~9.9ms Energy 5~450J/cm2
Discharge interval 1~4s Biopolar RF system
RF Delay 1~3s Cooling control 0°C~30°C
Cooling semi-conductor cooling, water cooling, air cooling Handle one handle for Body
Cooling Temperature -5~5 °C Energy 5~450J
